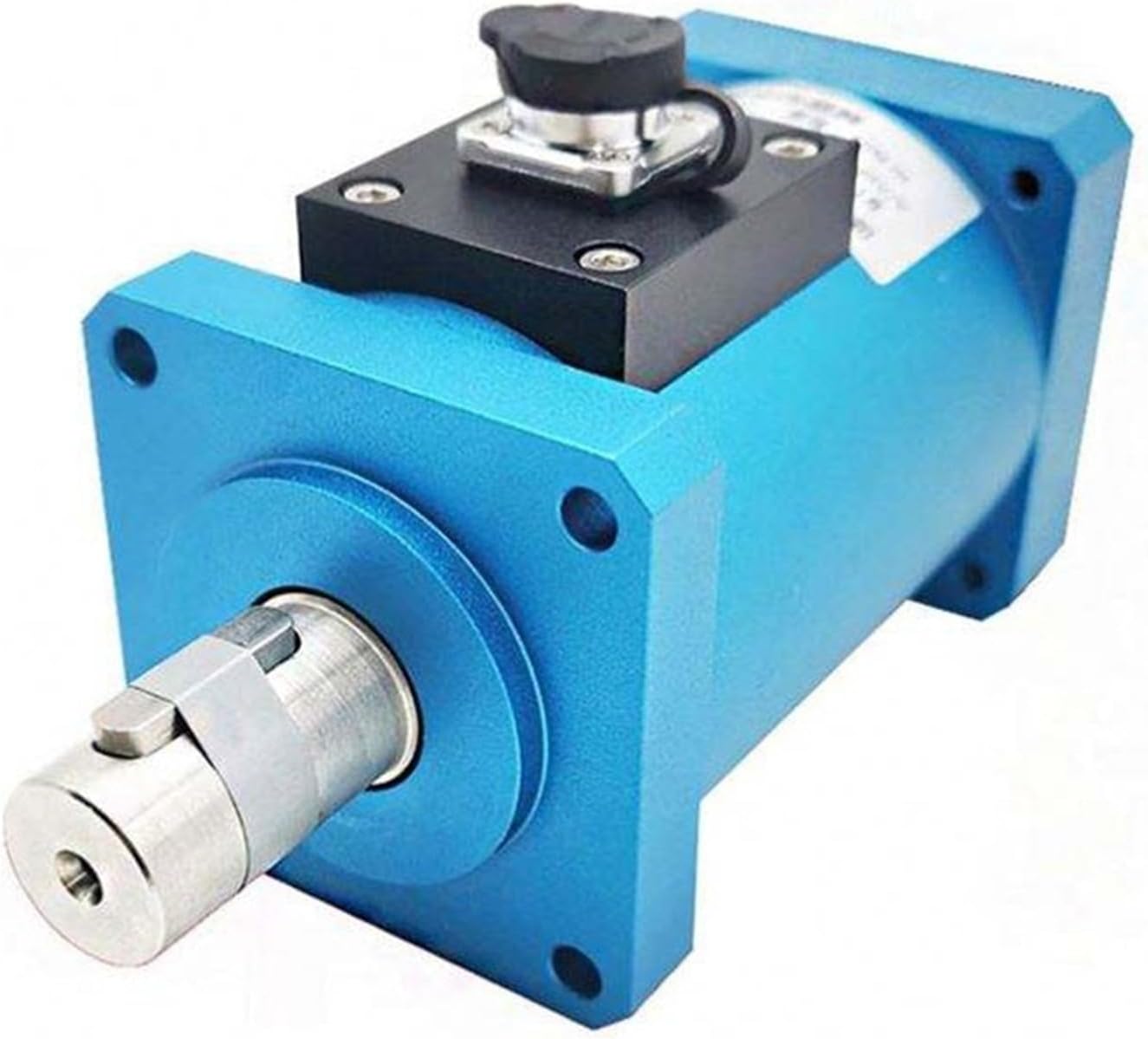

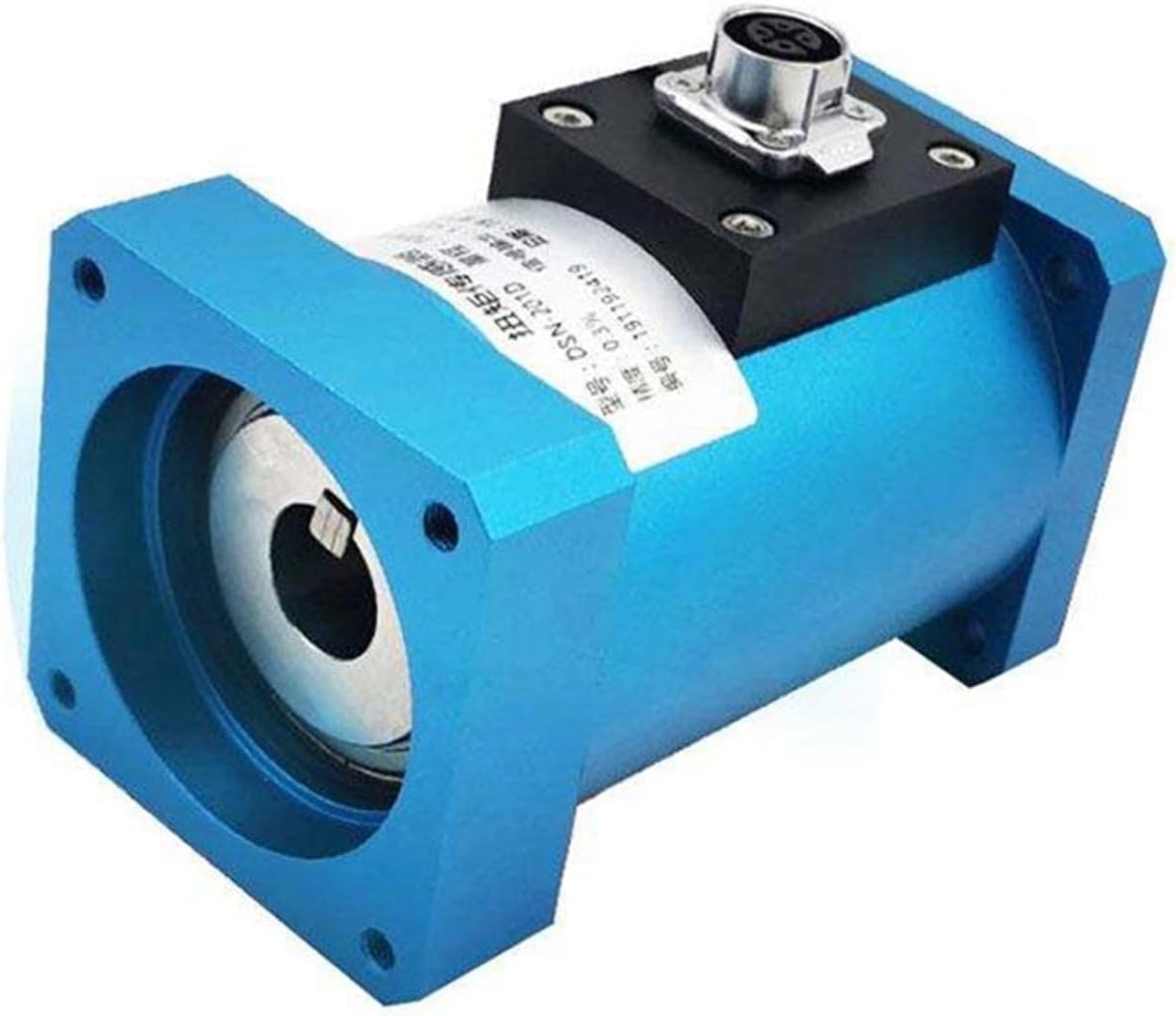

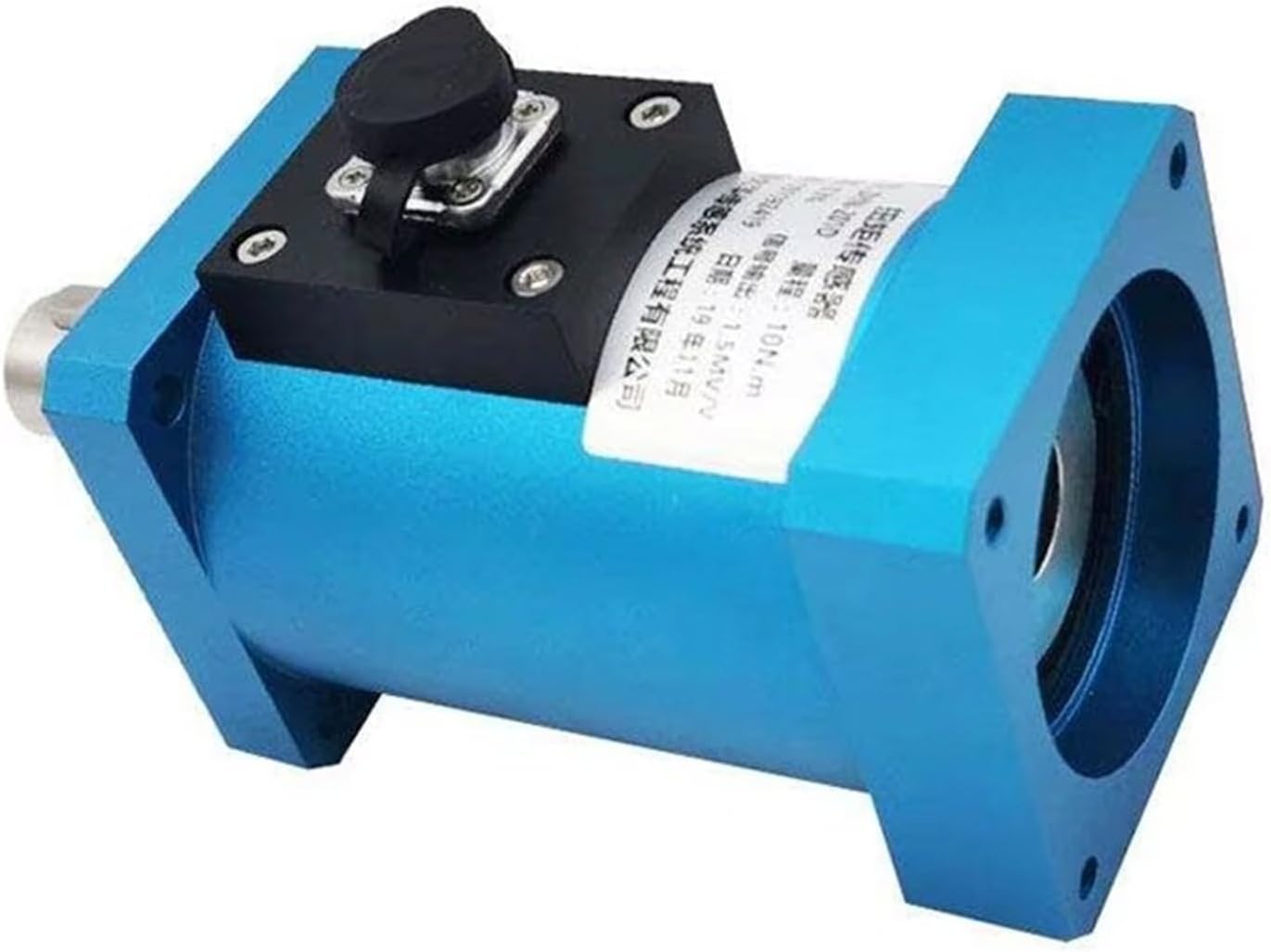

Torque Tester, Dual-Display Torque & Speed Sensor High Accuracy Strain Gauge Meter Dynamic Rotary Transducer(0-5N.M)

Measurement Range: 0–500 N·mSpeed ​​Range: 0–3000 rpm<;2.0 mV/VPower Supply: DC 5–15 VZero-Point Output: ±0.5% F.S.Non-linearity: 0.1% F.S.Hysteresis: 0.5% F.S.Repeatability: 0.05% F.S.Creep (30 min): 0.05% F.S.Temperature Sensitivity Drift: 0.05% F.S./10°CZero-Point Temperature Drift: 0.05% F.S./10°CFrequency Response: 1 kHzMaterial: Alloy SteelAnnual Stability: 0.3%/yearImpedance: 700 ΩInsulation Resistance: ≥5000 MΩ / 100 VDCOperating Voltage: 5–15 VOperating Temperature Range: -10°C to 60°CRelative Humidity: 0–90% RHSafe Overload: 150%

• High precision measurement range of 0–500 N·m and speed range of 0–3000 rpm for accurate torque and speed readings.
• Dual-display design for simultaneous monitoring of torque and speed, enhancing usability in various applications.
• Constructed from alloy steel, ensuring longevity and reliability in demanding environments.
• Exceptional performance with low non-linearity (0.1% F.S.) and hysteresis (0.5% F.S.) for precise measurements.
• Wide operating temperature range of -10°C to 60°C and high insulation resistance (≥5000 MΩ) for versatile use in different conditions.
